Friday, March 1, 2013

Sportsman Flyer at Bonneville





So, what did we get for our efforts?  A cool trophy, a certificate to validate our record, and a nice plaque.  Aside from all that we took home of lifetime of memories.  If you have never been to Bonneville you need to go.  If you can somehow set a record, then do it!!!!

Sportsman Flyer at Bonneville


Here we are lining up for another run.  From the left, Rich who is my brother and a big part of Sportsman Flyer, me probably wondering what I have got myself into, Shane of AGK who built out our motors, and Gunther who has ice water running through his veins.  Gunther was so cool on the bike.  Absolute confidence!



This is the entire team.  Dorathy in the middle and that's Skip and Dave on the right.  Skip was a big part of our testing and tuning efforts and Dave handled all the machining.  Thanks team!

Sportsman Flyer at Bonneville



Here  we are talking strategy before another run.  Our strategy?  Nail the throttle and run it as absolutely fast as it will go!  This is Bonneville, what other strategy is there?  My brother Rich on the left, Gunther on Bonneville Flyer Chassis #1, and me on the right.


 Here is Gunther at speed.  This picture really captures the essence of Bonneville.  Stark beauty of the salt flats and a rider at speed giving it all it has.

Sportsman Flyer at Bonneville



Has it really been a year since I have updated this section?  Yes it has.  I have plenty of excuses, like spending too much time on the computer and in the shop, but really, a whole year?  The biggest news from 2012 was our trip to the Bonneville Salt Flats.  With Sportsman Flyer as the manufacturer and Gunther Maier as our team rider we set a land speed record in the APF 175cc class at 73.526 mph.  Not only that, we entered the course seven times, and with the exception of the first run which was a rookie pass required by the rules, we bettered the existing record and then our own record every pass down the stip.

Tuesday, January 24, 2012

Sportsman Flyer 200 Article on Pipeburn



Pipeburn on-line magazine did a nice article on the new Sportsman 200 model.  You can check it out here: http://www.pipeburn.com/home/2012/1/24/the-sportsman-flyer-200.html
Thanks, Pipeburn, for helping to spread the word and for the cool black and white photo!

Thursday, January 12, 2012

Latest Model Release
Sportsman 200


Here it is, the Sportsman 200 model.  We call it the 200 model because it carries a GX200 clone engine that has 200cc and is putting out 15 hp.  This is one seriously fast bike!



It looks similar to other bikes in the Sportsman Flyer family, but this build is different in so many ways.  The biggest difference is in the performance.  This bike can comfortably cruise at 50 mph!




Here you can see the beautiful custom drive assembly available only on this model.  It is a very original vintage style reduction drive system.  The engine mounted twin disc centrifugal clutch works perfectly.  No slipper clutch here, the clutch grabs at 2800 rpm and off you go.  Acceleration is impressive!




Of course the bare frame looks the part of it's vintage relatives.  Classic loop frame design, heavy duty rear dropouts, proper triangulation of the engine mounts, and of course true lugged and brazed construction just like the original board track racers.
Sportsman Flyer LLC will be building just 20 of these frames for 2012, of which a handful will be full race models.

Monday, September 5, 2011

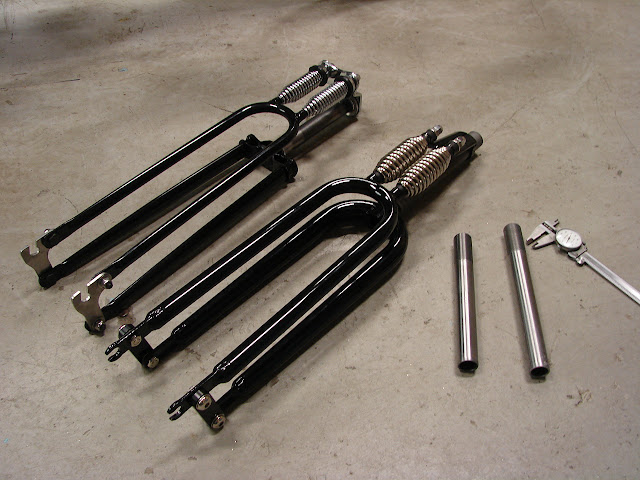

Monark Style Forks


I have been remanufacturing Monark forks for my builds.  Felt makes a beefier modern fork that looks similar to the Monark and they call it the Abraham Linkage fork.  Problem is people can't use it on vintage builds as the newer fork uses a 1 1/8" threadless stem.  Vintage bikes require a 1" threaded stem.


I am in the process of modifying these newer forks to the 1" threaded stem.  It will take a bit of machining from this point and I should have the first test unit ready soon.  These are going to be so cool!

BTR Seat Cover


I finally got around to improving the cover on my BTR seat.  I gave a local upholstry shop a bare steel pan and a bunch of pictures of original boardies.  Here is what the shop came up with.


Once mounted the new seat gives the bike a heavier and more filled out look.  I have brass badges coming which will mount to the rear of the seat and carry the Sportsman logo.

Friday, August 12, 2011

Heavy Duty Drum Brake Hubs




I have been having trouble getting the correct tooth count and offset sprockets for the large drum hubs I use.  Finally I just had them made.  These sprockets use an adapter plate that carries the drum brake bolt pattern and then I went with split sprockets to make gearing changes easier.  The split sprockets use an standard bolt pattern used in Kart and Jr. Dragster racing.


Here are the hub components.  Stock sprocket is shown to the left, adapter in the middle, and new split sprocket on the right.



Here is the hub assembled with the new adapter and sprocket.  Also shown is the bicycle side freewheel sprocket.

Revised BTR Handlebars


I have continued to improve my BTR style handlebars and here is the latest version.  It took awhile to settle on the right combination of parts to get the vintage Indian motorcycle shape I was after.


The handlebars are aluminum and the drop bar clamps are CAD designed and CNC machined out of billet aluminum.  These bars are light weight and very strong.


Here is a close-up detail of the drop clamps.  The CNC machine work is perfect!  Bars are available in silver powder coat or black.
